The F–System is a luminaire system designed by Jörg Boner in three sizes that is effortlessly scalable for a wide range of architectural applications and mounting options.

F-System

“There is a reason why this product family is so popular—the F–System adapts to a wide variety of contexts and also impresses with its timeless design.

What sets F–System apart

Unbeatable flexibility

With 3 available sizes (XS, S, M), up to 10 x 16 LED modules that can be aligned in 0° and 180° , a wide range of combinable light distributions and color temperatures, the F–System can deliver the most suitable light shape and illuminance for the project in a static or dynamic way from any light point height (LPH).

ewoLightLayers

It is possible to add factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (anti-glare protection).

Intelligence Ready

All electrical components and smarts (nodexx, antenna and sensors) can be discreetly integrated into the housing to maintain the minimalist design. Zhaga or Nema sockets can be attached to the housing. Low copper content ≤ 0.08% in the housing and possibility to add additional corrosion protection (ewoECP).

Technical data

A–Series

Current feed: 200 mA–700 mA, depending on ambient temp (F5 max. 600 mA)
Max. luminous flux 17,100 lm
Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon reques
Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature
Max. luminous flux 4,600 lm
Color temperature Tunable White 2,200-6,500 K, standard CRI ≥ 80, upon request CRI ≥ 90
Electronic operating device with DALI T8 interface.

Body of Light

Pole and wall–mounted luminaires

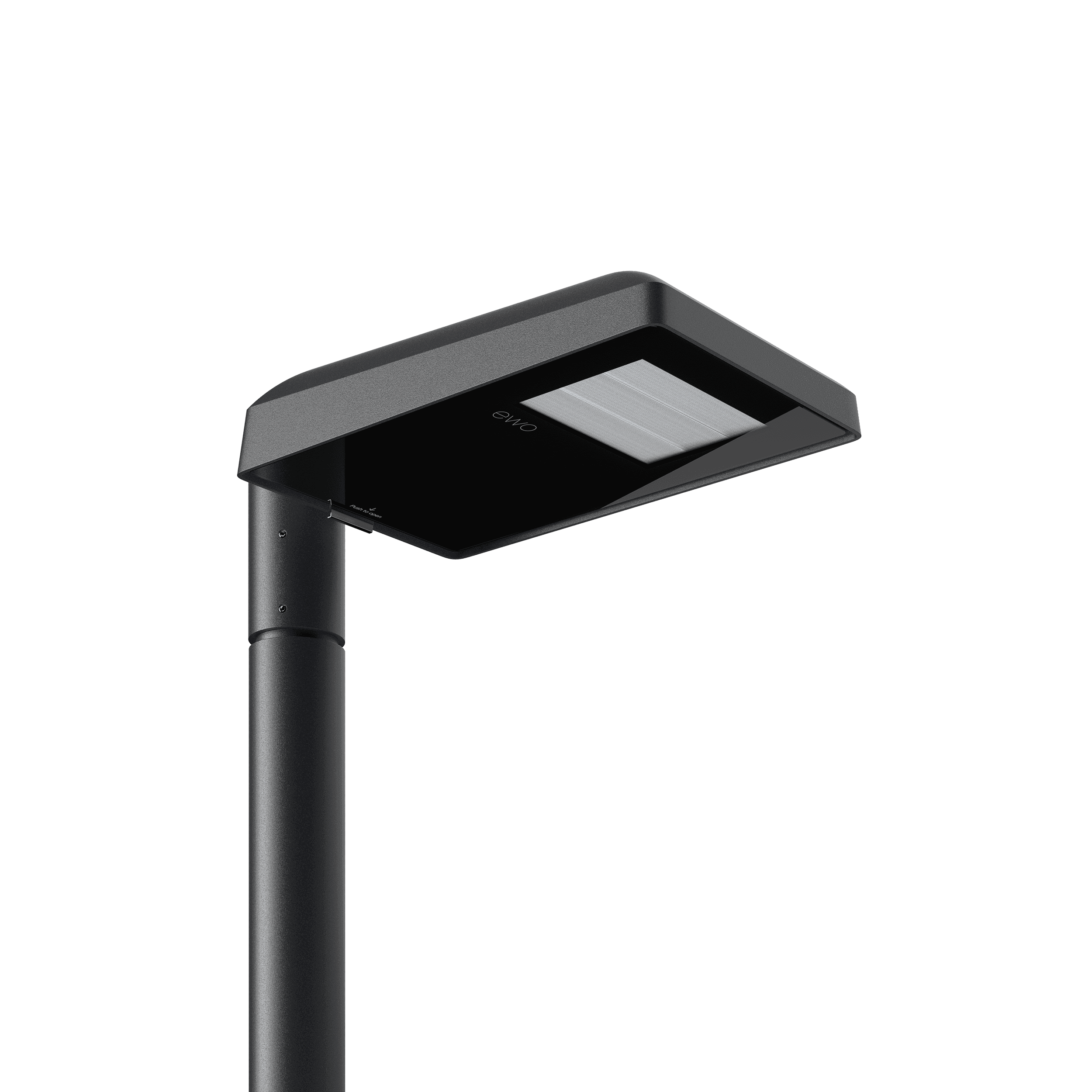

Pole F–System

Pole
Pole–mounted
Rectangular
Monochrome
General illumination
Urban life

Pole and wall–mounted luminaires

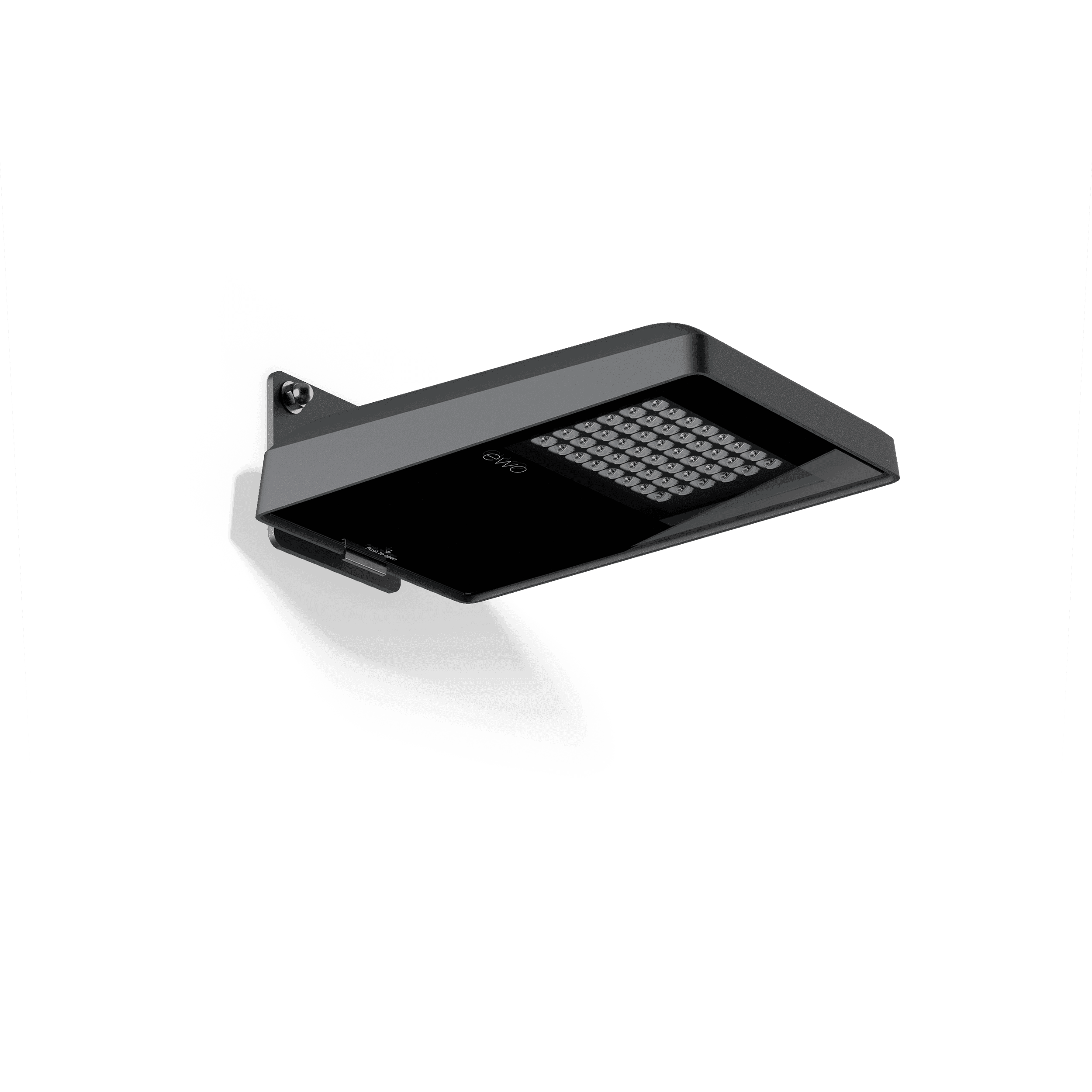

Wall F–System

Wall
Surface–mounted
Rectangular
Powder coated
Monochrome
General illumination
Urban life

Shape of Light

The F–System product family can be equipped with up to 10 x 16 LED modules, which can be aligned at 0° and 180°, and is compatible with a wide range of light distributions and color temperatures—the A–Series product family alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

Flughafen München © Oskar Da Riz

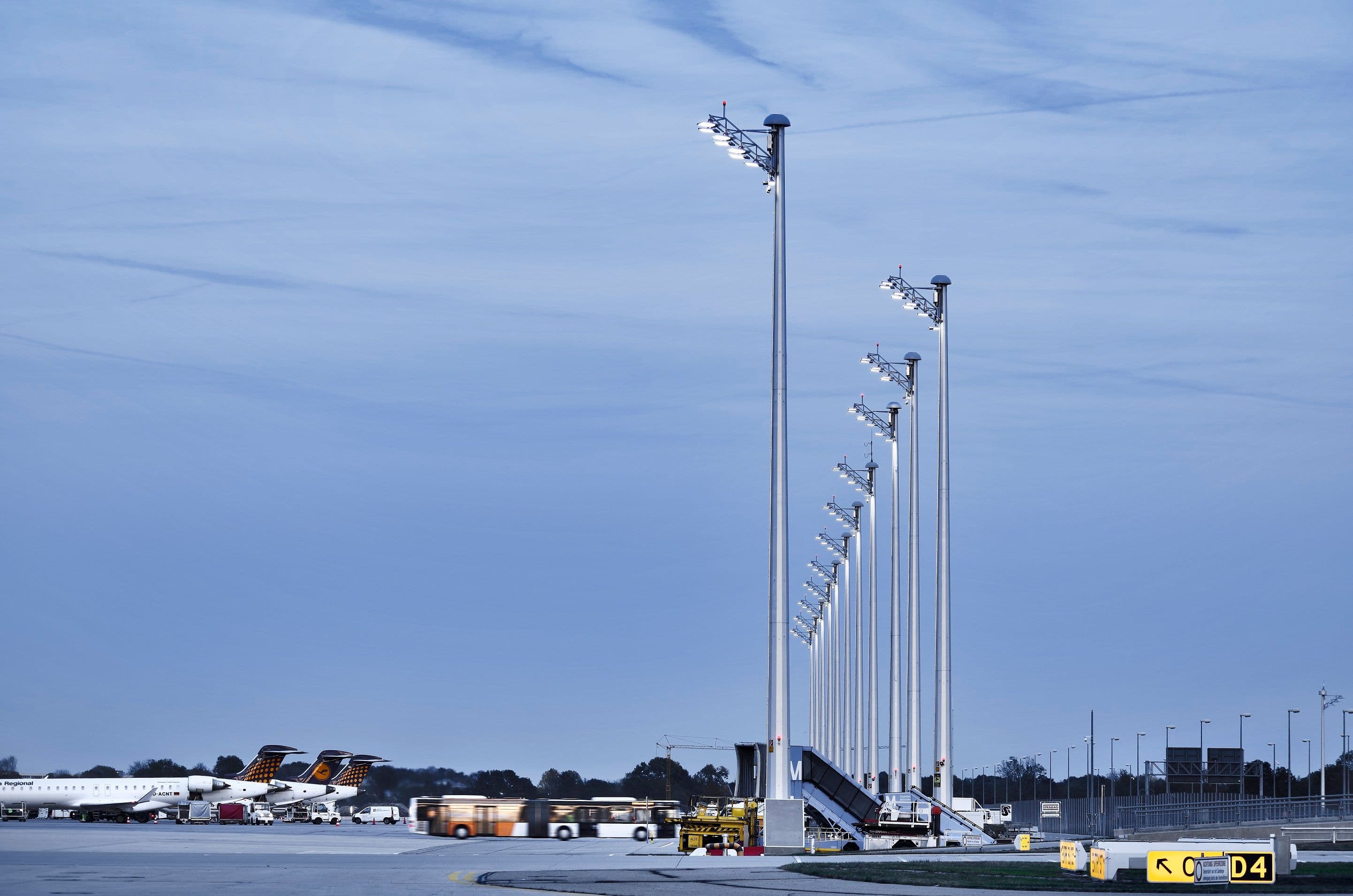

The F–System illuminates Ramp 2 at Munich Airport

Flughafen München © Oskar Da Riz

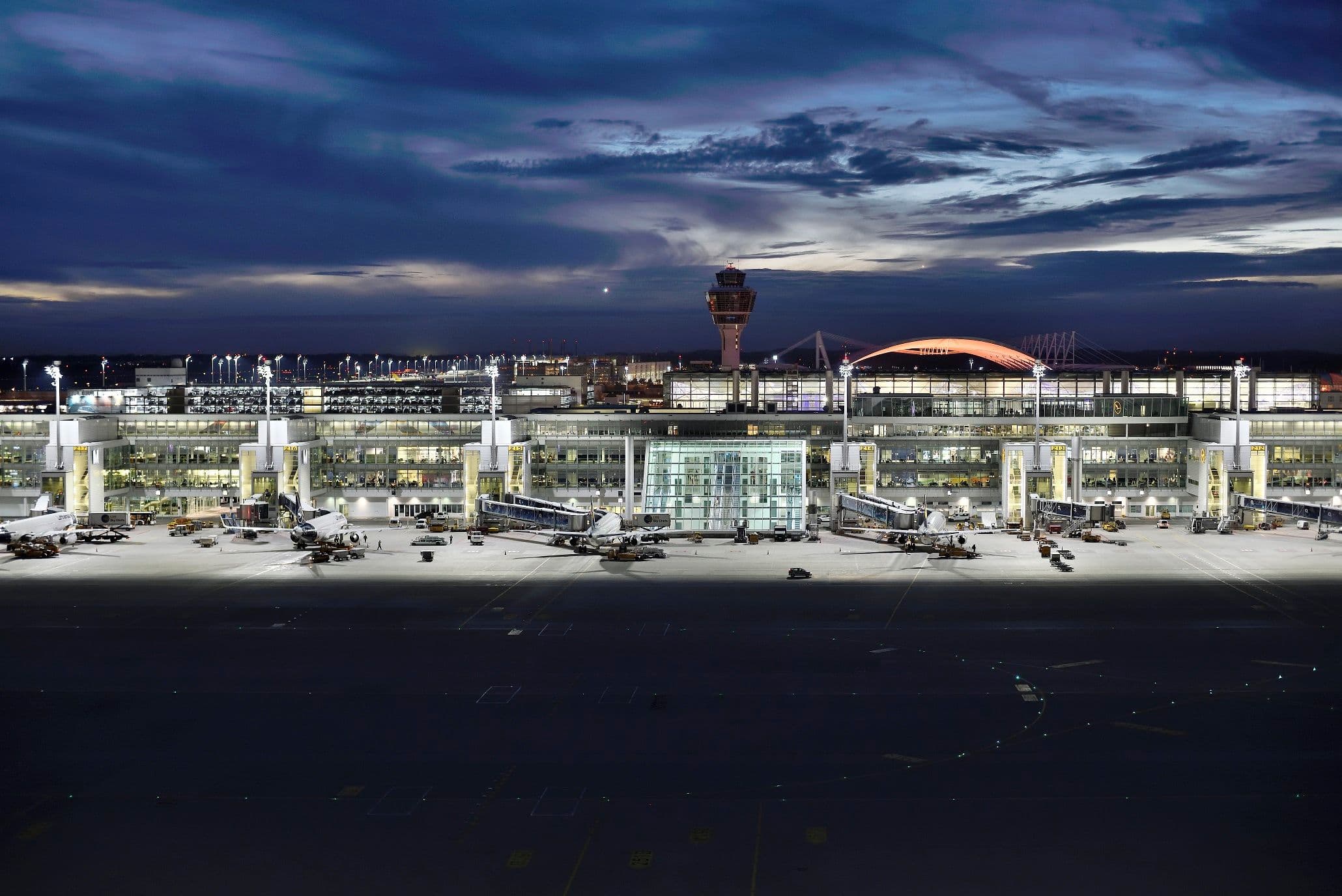

F–System ensures targeted lighting even on large surfaces, as here at Munich Airport

Intelligence of Light

The F–System is compatible with all electrical components and smarts such as DALI, nodexx, antenna or sensors, maximizing both safety and energy savings. A Zhaga interface can also make the product family compatible with smart city technologies and central control systems.

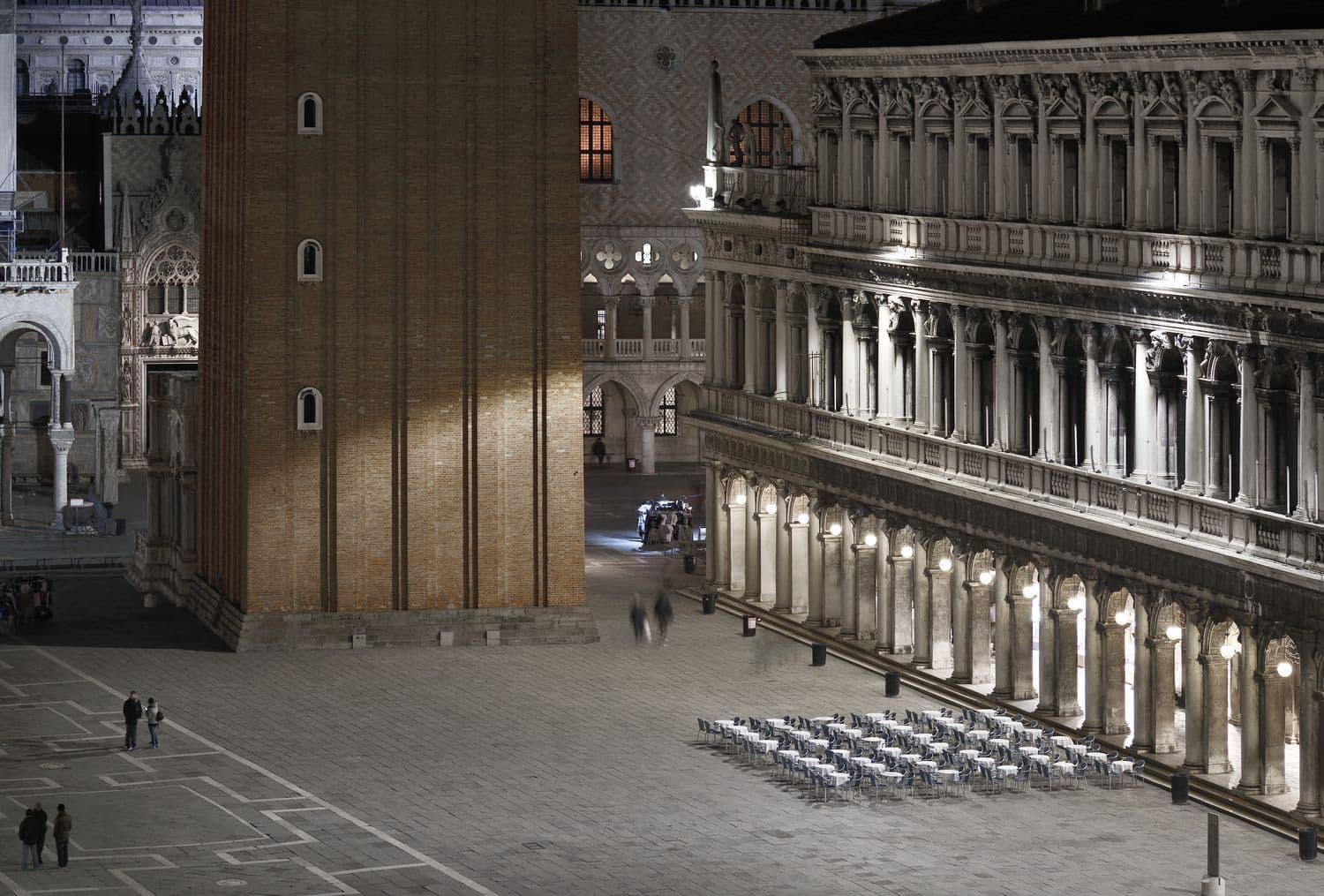

Markusplatz Venedig © Oskar Da Riz

F–System provides the basic lighting at St. Mark's Square in Venice at night

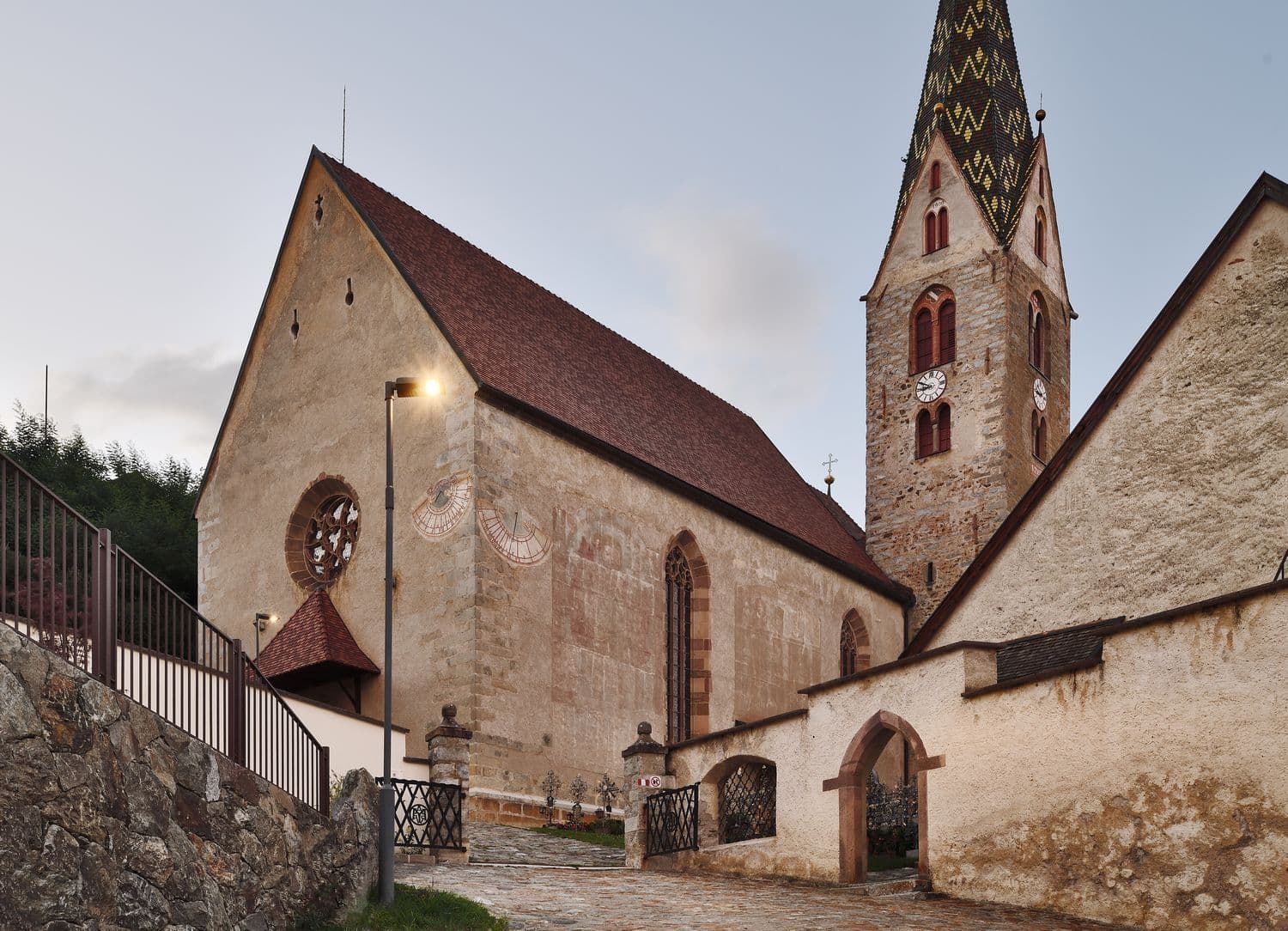

Villanders © Oskar Da Riz

The Italian village of Villanders relies on smart lighting with F–System

Designed by Jörg Boner

Swiss product designer Jörg Boner is responsible for the luminaire design of the F–System product family. He has designed the luminaire in three sizes, making it easily scalable for a wide range of architectural applications. The tool-free removable cover of the luminaire is a practical design detail for simplified maintenance.
